What Does A Clutch Cover Aseenmbly Consist Of?

Hello! We're happy that you can spare precious time to read this article! Today, we will share you with some information about Clutch Cover and Clutch Disc.

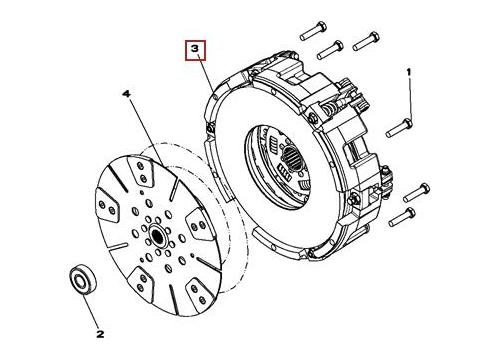

By the way, I'd like to introduce Clutch Cover Assembly first. It is crucial in the transmission system of tractors, responsible for engaging and disengaging the engine's power to the drivetrain, to help tractor be in smooth operation. It includes Clutch Cover, Clutch Disc, Release Bearing, Fork and Linkage and Flywheel.

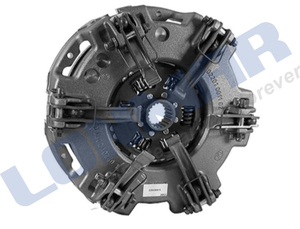

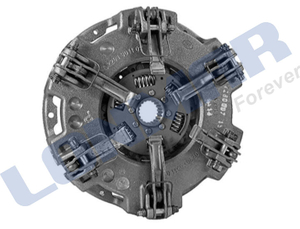

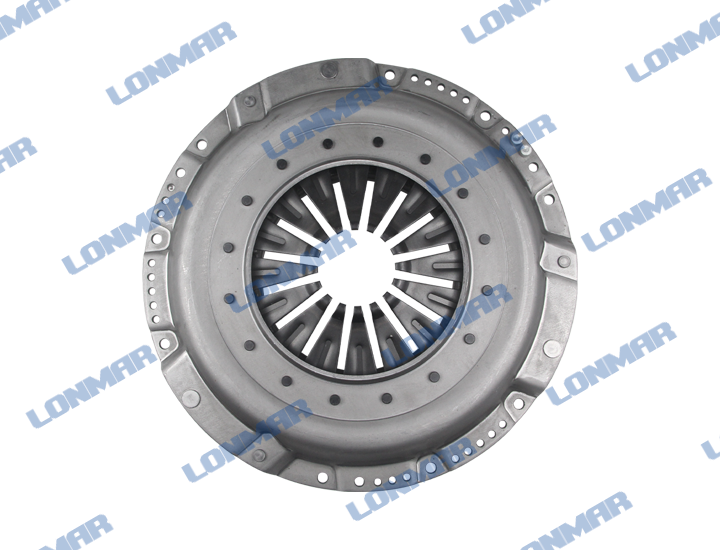

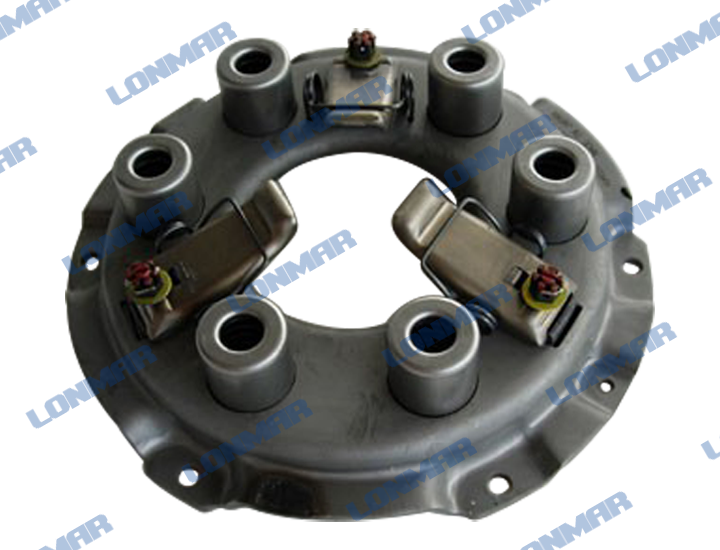

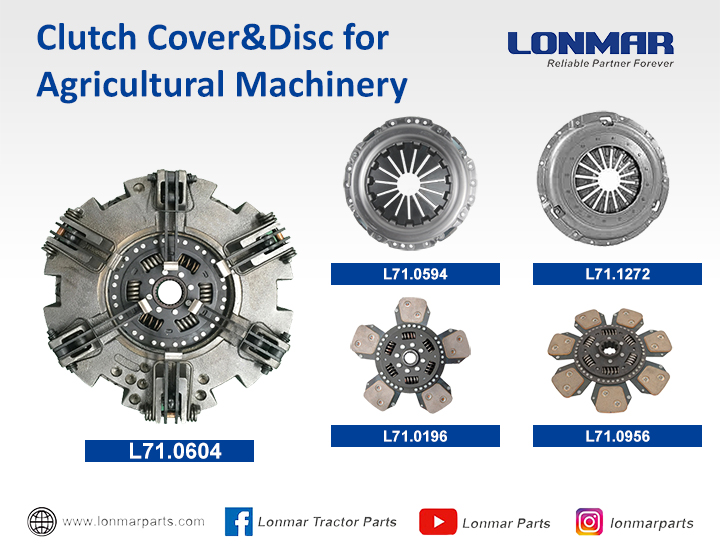

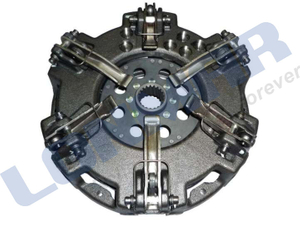

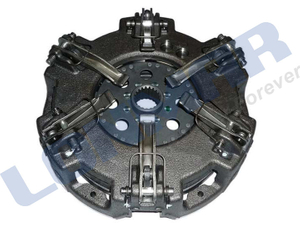

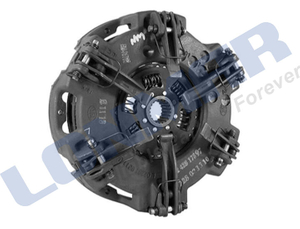

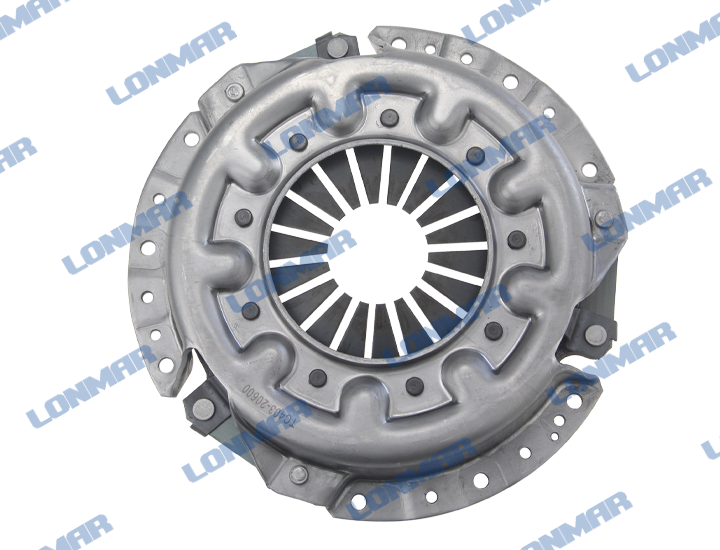

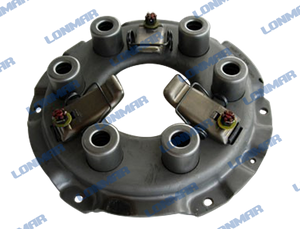

After knowing Clutch Cover Assembly, let's see Clutch Cover. It is the main part of the assembly that applies pressure to the clutch disc when engaged. But do you know what constitute a clutch cover? The answer is Pressure Plate (presses the clutch disc against the flywheel to transmit engine power), Mounting Points (ensure proper installation), Release Mechanism (disengage the pressure plate from the clutch disc when the clutch pedal is pressed). Here are some pictures of our company's Clutch Cover.



And are you interested in how the clutch cover work in tractors? We'd like to share two main fuction.

1. Engagement and Disengagement:

When the tractor's driver presses the clutch pedal, the release bearing pushes against the pressure plate, which moves away from the clutch disc, allowing the gears of the transmission to shift. When the pedal is released, the pressure plate re-engages the clutch disc, allowing power to flow from the engine to the drivetrain.

2. Torque Transmission:

When fully engaged, the pressure plate transmits the engine's torque through the clutch disc to the transmission, enabling the tractor to move.

Then let's see the clutch disc. It located between the flywheel and the pressure plate, transfer engine power to the transmission when engaged.

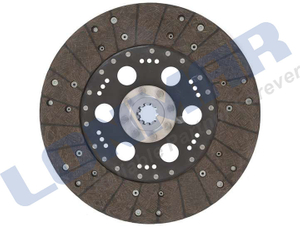

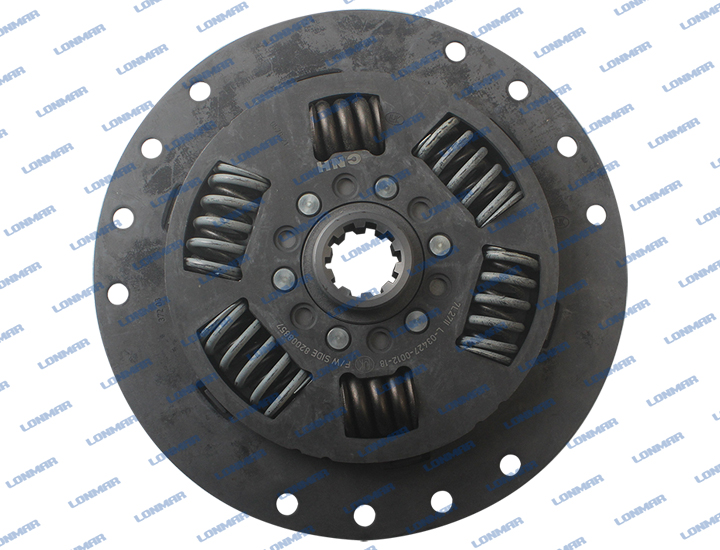

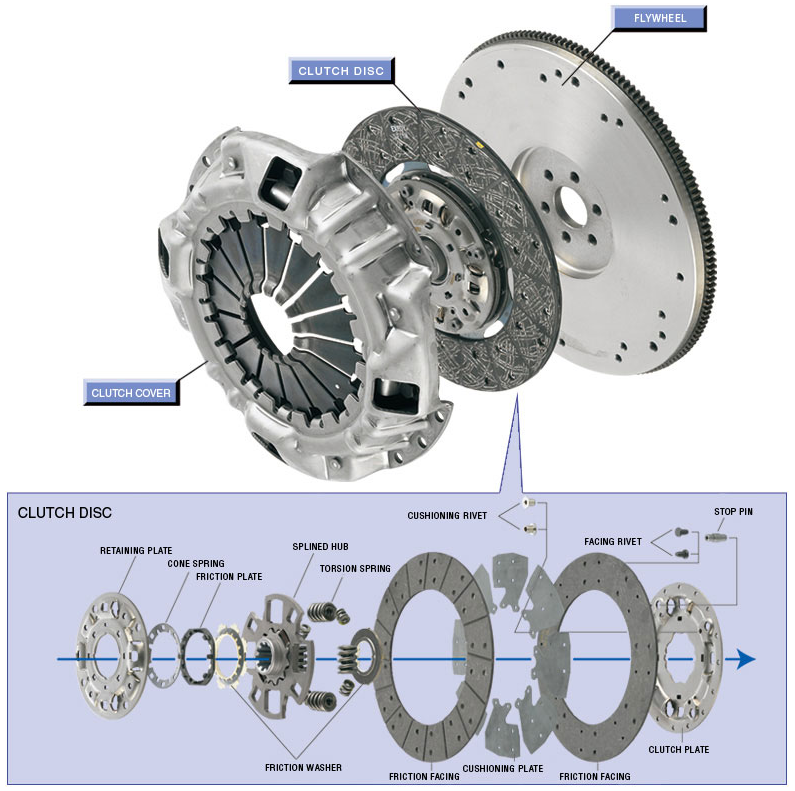

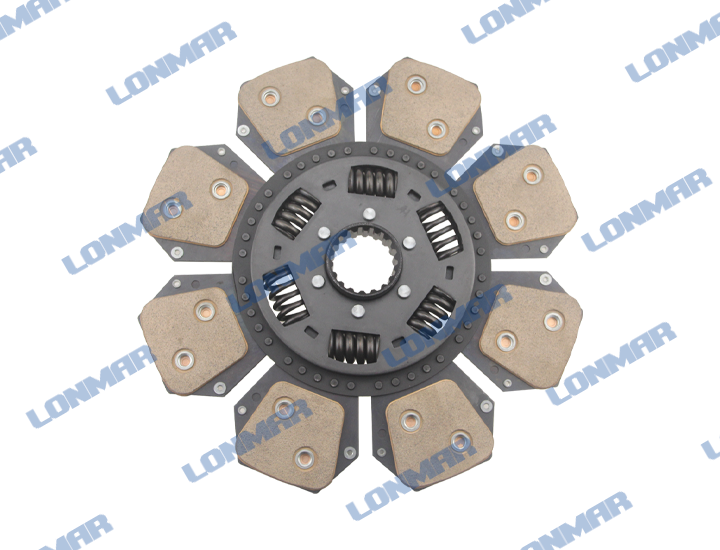

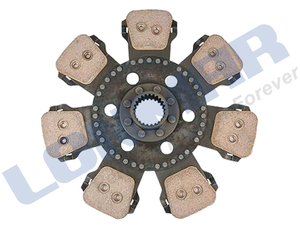

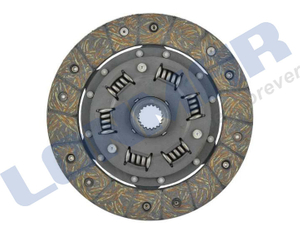

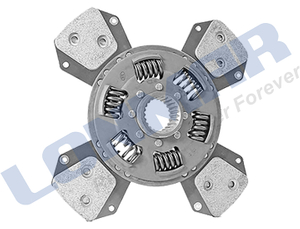

And a clutch disc includes following parts. Friction Material (provides the necessary friction to engage the clutch with the flywheel), Core Plate (connects the friction material and helps maintain the disc's shape under pressure). Some clutch discs are equipped with springs that allow for a slight amount of flex, absorbing shock and smoothing out engagement during operation. Splines that connect to the transmission shaft, allowing the clutch disc to transfer power when engaged. The following are some pictures to help you understand more vividly.



How the clutch disc work in tractors? Also, we share you with two usages.

1. Power Transmission:

to facilitate the transfer of power from the engine (via the flywheel) to the transmission. When the clutch is engaged, the friction material on the disc grips the flywheel, rotating it and allowing power to flow to the drivetrain.

2. Engagement and Disengagement:

When the tractor operator presses the clutch pedal, the clutch disc is disengaged from the flywheel, breaking the connection between the engine and the transmission. This allows for smooth gear changes without stalling the engine.

The following are some details of our company's Clutch Cover Assembly, Clutch Cover and Clutch Disc.

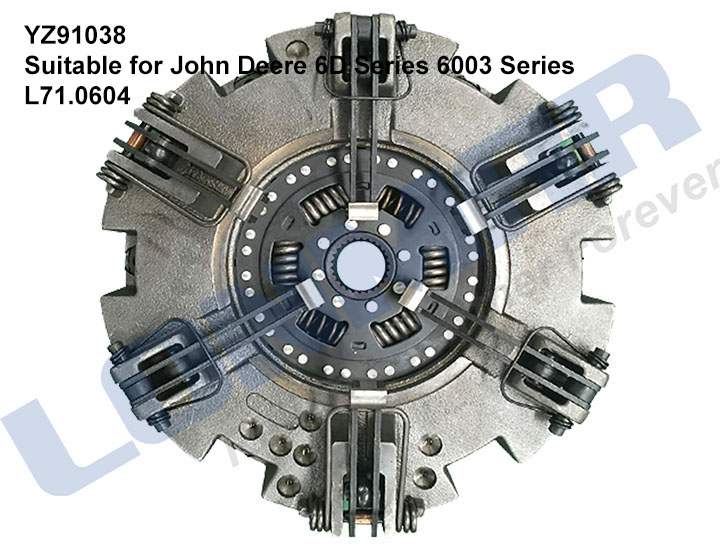

Clutch Cover Assembly for John Deere

L71.0604(YZ91038,SJ16518,YZ90101)

MODEL NO.: John Deere 6100D,6115D,6130D,6403,6403 Asia,6403 Mexico,6403 S Africa,6503 S Africa,6603,6603 Asia,6603 S America

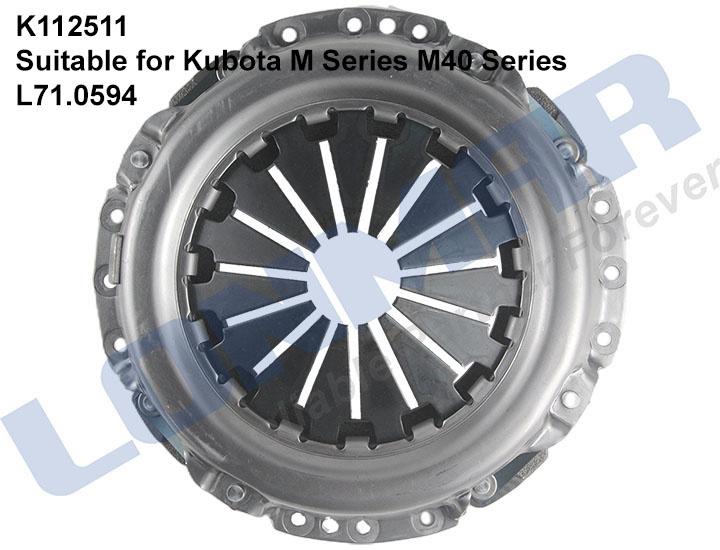

Clutch Cover for Kubota

L71.0594(K112511,K3G011-24110)

MODEL NO.: Kubota

M4700,M4800,M4900,M5040,M5400,M5700,M6040,M6800,M7040,M8200

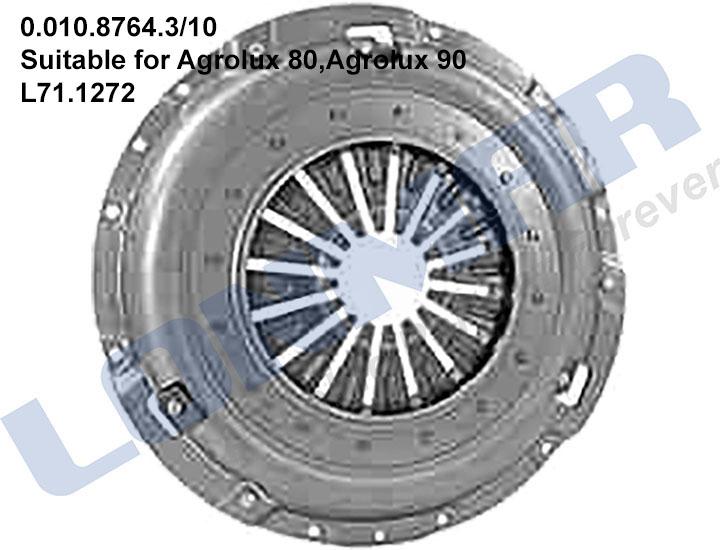

Clutch Cover for Deutz-Fahr

L71.1272(0.010.8764.3/10)

MODEL NO.: Deutz-Fahr Agrolux 80,Agrolux 90

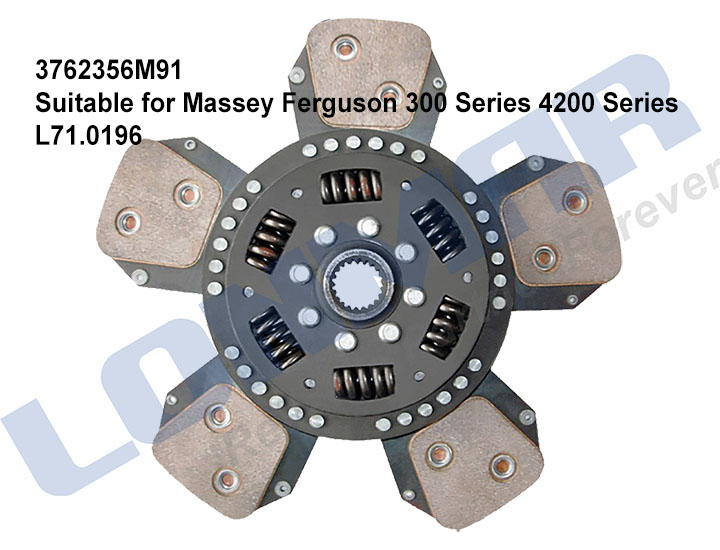

Clutch Disc for Massey Ferguson

L71.0196(3762356M91)

MODEL NO.: Massey Ferguson 300 Series 4200 Series

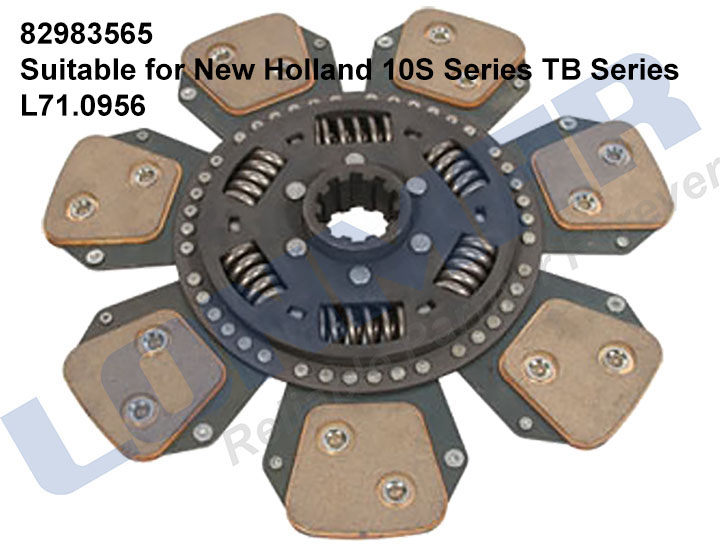

Clutch Disc for New Holland

L71.0956(82983565,73337468)

MODEL NO.: New Holland 10S Series TB Series

If you are interested in other clutch cover or disc, please feel free to contact us!
