How Does The Crown Wheel Pinion Influence The Tractor's Performance

Views: 54     Author: Site Editor     Publish Time: 2024-11-20      Origin: Site

Hello! Thank you for taking the time to visit our website. Today, we Lonmar will introduce “Crown Wheel Pinion”used in tractor to you.

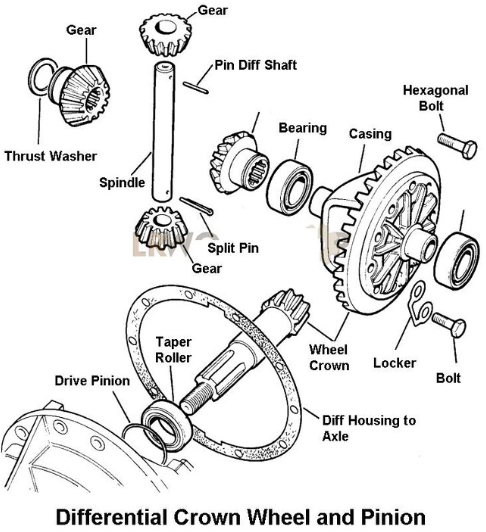

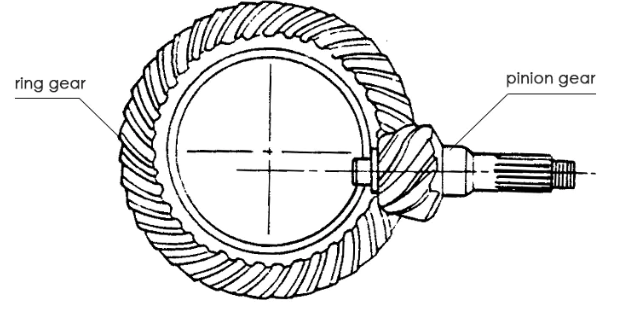

The crown wheel pinion includes a crown wheel and a pinion gear. It also called Bevel Gear set or Ring Gear and Pinion Set. Actually, the crown wheel pinion is important in the drivetrain, particularly within the rear axle or differential gear assembly. It turns the engine's rotational power into the torque necessary to drive the wheel.

3

 Crown Wheel Pinion for Tractor

The size of the crown wheel and pinion influences the tractor's performance. A larger crown wheel and a smaller pinion would provide greater torque and pulling power which will be better for tractor use.

picture 1

             1

Many customers ask how does the crown wheel pinion work in tractors. This article will introduce the following three fuction to you.

1.Torque Transmission: When the engine turns the driveshaft, the pinion gear engages with the crown wheel, converting rotational motion into the torque needed to move the tractor, facilitate the transfer of torque from the tractor's engine through the transmission to the rear wheels.

2.Power Distribution: The crown wheel and pinion allow for differential movement between the left and right wheels, enabling better traction and control, especially when turning or navigating uneven ground.

3.Reduction Gear: The gear ratio between the crown wheel and pinion is crucial. Tractors usually have a lower gear ratio compared to cars to provide more torque, which is essential for tasks like plowing, towing, or hauling heavy loads.

2

The following are some details of our company's crown wheel pinion.

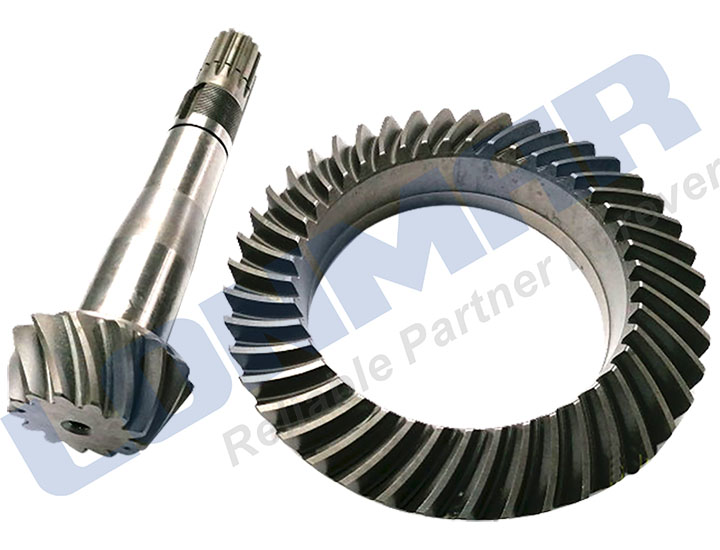

Crown Wheel Pinion for Fiat Tractor

L72.0617(5142249,5007644)

MODEL NO.: Fiat Tractor 100-90,110-90,70-66,80-66,90-90

Description: Shaft Teeth:13T Wheel Teeth:43T

L72.0617-官网

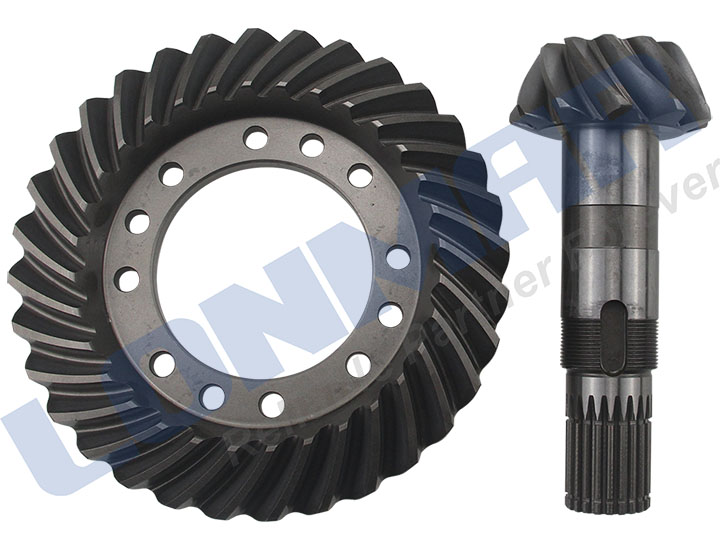

Crown Wheel Pinion for Massey Ferguson

L72.0843(040978R1)

MODEL NO.: Massey Ferguson 200 Series 2600 Series

Description: Shaft Teeth:11T Wheel Teeth:32T

L72.0843-官网

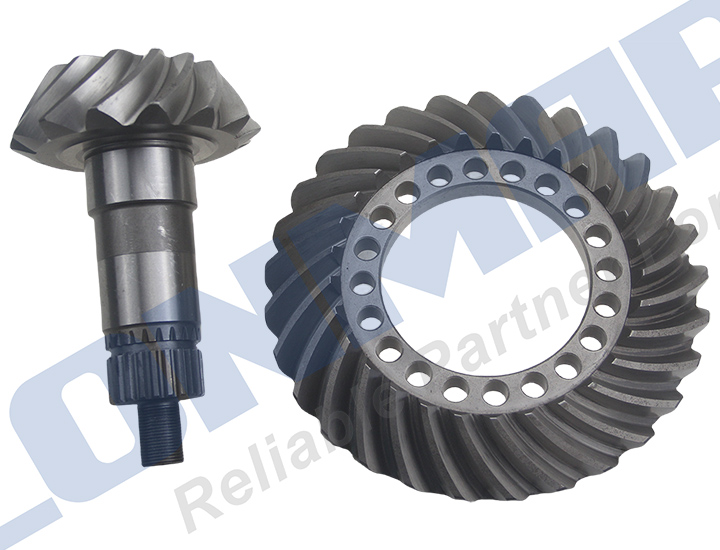

Crown Wheel Pinion for John Deere

L73.1920(AL175762)

MODEL NO.: John Deere 6J Series 6M Series

Description: Shaft Teeth:14T Wheel Teeth:29T

L73.1920-官网


Crown Wheel Pinion for Kubota

L73.2382(TC050-99342)

MODEL NO.: Kubota L Series MX Series

Description: Shaft Teeth:6T Wheel Teeth:37T

L73.2382-官网

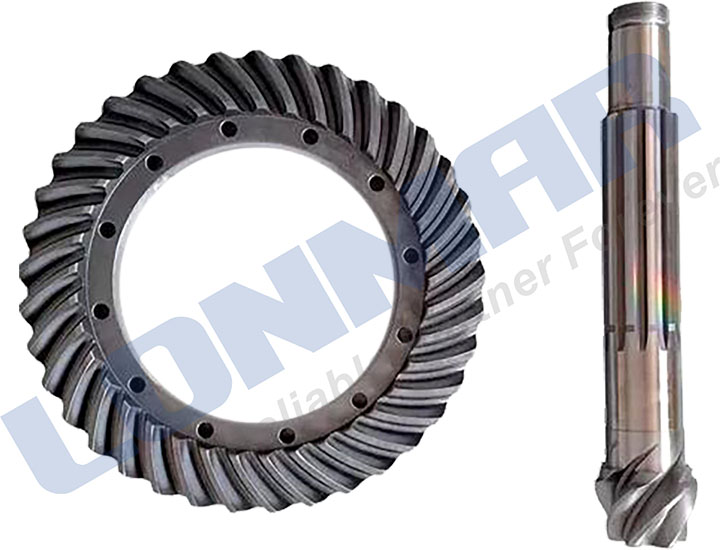

Crown Wheel Pinion for Valtra

L73.3238(V80495400,80495400)

MODEL NO.: Valtra 685C,685F,785C,785F,BF65,BF75

Description: Shaft Teeth:6T Wheel Teeth:37T

L73.3238-官网

If you are interested in other crown wheel pinion, please feel free to contact us!
